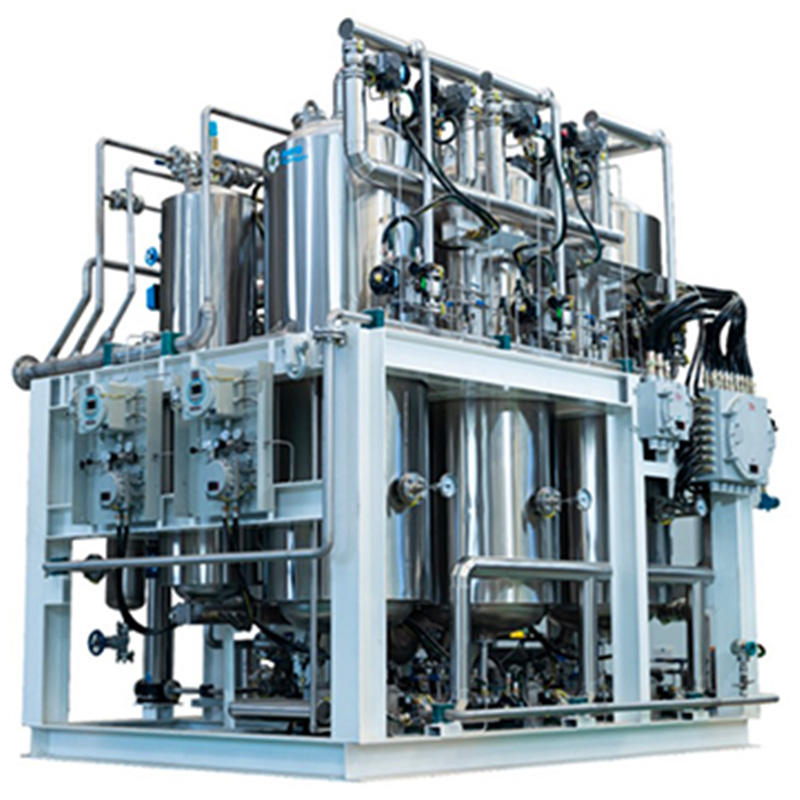

PSA Hydrogen Generator for High Purity On-Site Hydrogen
Oct 21 , 2025
The PSA Hydrogen Generator (Pressure Swing Adsorption) is a continuous hydrogen production system for on-site generation.
It is based on PSA technology to separate high-purity hydrogen from feed gases like reformate or natural gas. The system has a stable operation, low energy consumption, and simple maintenance, and can meet the requirements of various industrial fields that need a continuous supply of hydrogen.
l Product Name: PSA Hydrogen Generator
l Technology: Pressure Swing Adsorption (PSA)
l Hydrogen Purity: up to 99.999%
l Capacity: 5–5000 Nm³/h
l Operating Pressure: 0.1–3.0 MPa
l Applications: Chemical, Metallurgy, Electronics, Food, Glass, Energy
l Certification: ISO, CE
l Control: Fully automatic PLC system
l High hydrogen purity (up to 99.999%)
l Stable performance with continuous production
l Low energy consumption and economical to operate
l Fully automatic control system
l Modular and compact design, easy installation
l Low maintenance and long service life
l Fast start-up time
|
Parameter |
Specification |
Unit |
|
Hydrogen Purity |
99.9–99.999 |
% |
|
Capacity |
5–5000 |
Nm³/h |
|
Operating Pressure |
0.1–3.0 |
MPa |
|
Dew Point |
≤ –60 |
°C |
|
Technology |
PSA |
— |
|
Control System |
PLC Automatic |
— |
|
Installation Time |
20–45 |
Days |
l Provides on-site hydrogen supply, no need for transportation or storage of cylinders.
l Delivers high-purity hydrogen up to 99.999%, which can meet the strict requirements of the electronics industry and chemical hydrogenation reactions.
l Energy-saving optimized PSA system with low power consumption.
l Safe and reliable with multiple built-in safety controls and alarms.
l Customizable according to the customer’s demand of capacity and output pressure.
l Environmentally friendly clean hydrogen production, zero emissions and pollution.
l Chemical Industry – hydrogenation, ammonia production
l Metallurgy – protective atmosphere, annealing
l Electronics – semiconductor manufacturing, etching
l Food Industry – hydrogenation of edible oils and fats
l Energy & Fuel Cells – clean hydrogen supply
l Glass Industry – protective gas atmosphere
l The PSA Hydrogen Generator separates hydrogen in mixed gas streams using selective adsorption on special adsorbents at high pressure.
l Feed gas is supplied to the adsorption columns.
l Impurities such as CO, CO₂, CH₄, and moisture are adsorbed by the adsorbents.
l Hydrogen is separated and produced as product gas.
l Adsorption columns are regenerated by reducing the pressure (swing adsorption).
l This cyclic operation provides a continuous supply of high-purity hydrogen.
l ISO 9001 Certified Manufacturing
l CE Certified Equipment
l 100% Performance Testing Before Delivery
l Skid-Mounted & Easy to Install
A1: Typical purity is from 99.9% to 99.999%, depending on system configuration.
A2: PSA is more suitable for large-scale production and has lower operating costs.
A3: It takes about 20–45 days depending on the capacity and site conditions.
